Sagebox - Alpha Version Release Announcement

Sagebox is a set of C++ tools to write WIndows or Console-Mode programs that use Windows functions as easy as scripting language, but with the power, structure and speed of compiled C++.

With Sagebox, you can write a C/C++ program that uses the full power of windows as a simple procedural program, or as a fully-canonical event-driven program. -- or a mixture of the two, allowing you to start quickly and then, if desired, move into more complex event-driven Windows elements as you go.

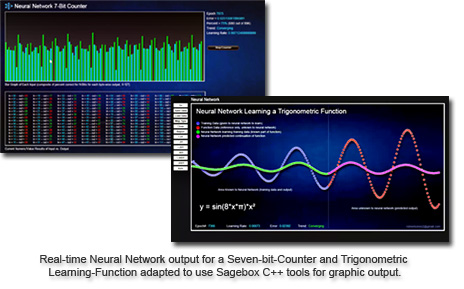

I wrote and have been using Sagebox as a personal tool for years, writing commercial programs (such as Sagelight Image Editor), neural networking applications, and in private computer consulting to create high-level GUI applications to talk to and control hardware, such as emulators and general development tools.

I spent the last few months putting on easy-to-use interface around the core functions of Sagebox, so that anyone can use it with very little introduction.

Sagebox is free for personal use, and is also great as professional tool, useful for building and developing. Sagebox is going to try to go the free routine and look for funding through donations, perhaps a GoFundMe, or some other way to finance the development. For work-related and other professional use, please contact rob@projectsagebox.com

Since Sagebox pure C/C++ and is not a scripting language or a programming environment, it works with your C/C++ coding style, and can be brought into existing code as simply as bringing in an external library. While Sagebox provides very powerful functions and methods, you can keep your program as your program, writing it in any style you wish, with Sagebox there to help.

Since Sagebox works procedurally as well event-driven, you can bring Sagebox into an existing project, console mode or Windows, to add Windows and other functions without changing the style of your code.

The main focus of Sagebox is the idea of creative development and a way to stay in the creative process white developing or simply playing around with code. This can be hard to do today with so many needs of the OS and the event-driven structure that needs to be understood. This often causes us to split out our program into an event-driven model vs. procedural, making it harder to understand, develop and change. When we want to develop creatively with the need to create a specific structure for our code just to support the UI and other elements, it can mean writing more code just to support that structure than the actual code focused on what we're wanting to accomplish. In many cases, the answer is that we just don't do it unless we have to, or implement it minimally, which thwarts the creative process (and sometimes the fun of programming)

I personally like the modern-day operating systems and their respective UI's work. It brings a lot of power, but also a lot of overhead. We can use that same power to do things more simply, without losing anything. Most of the time, with the right tool-set, C/C++ programs don't actually need to be written in an event-driven structure, even when they are based in the Windows UI. Much of the time, this is required simply because we want to put something on the screen or talk to a device. We can do that in very different ways now, including procedurally or through sub-classing. The events of the OS are still with us, as they should be, but there are different ways to go about handling them where we don't need to split our program up into pieces.

This is really the heart of Sagebox: keep things simple without losing power, and to make it easy when we do want to get more complex. Sometimes,though, you want to handle events as events. Sagebox has a built-in method to handle the transition and working with both procedural handling and event-driven handling together.

Sometimes I just want to be creative and work on other things, and this was literally the question I asked myself. I wanted something easier, functional, and consistent. I didn't start in Windows programming but learned it to support what I did best: writing low-level fast routines -- which now days, writing GUI-based desktop code is a much better way to develop even low-level embedded systems. I didn't want to write an entire event-driven structure just because I needed GUI plaform, but definitely wanted to stay with C++ and the ability to drop into .ASM/SSE code whenever I wanted (since I'm a low-level guy), or to emulate the C/C++ I might use on the device or elsewhere.

I was watching a video by Thomas Figg, entitled "Programming is Terrible" (I am sure the title is sarcastic) and he asked the audience who started in Logo. A few people raised their hands. His response was,

"That's why you've never escaped programming. It was so much fun in the beginning and you've been trying to find and recapture that ever since -- I know I have."

For me, it wasn't the language Logo, but assembly language and Basic, and a magazine called Creative Computing. What a wonderful magazine. You could just type in the programs they would give you and they would run! You didn't always understand what the code did, but you could modify it and play with it. In the above magazine cover is an Ascii representation of Spock from Star Trek.

I wanted to recapture those days with C/C++. Though Sagebox has matured into a development tool useful across the board, this is where Sagebox started, with the focus of creative development and the fun of programming.

Now days, we can do much more interesting things with ASCII pictures (such as the above image if we want to), such as gray-scaling, using color, or a black background for more contrast.

To re-create this picture, all I have to do is create a window, print ASCII characters in the font chosen, copy them into bitmaps, average them for their light value, and distribute them accordingly. I can also apply Floyd-Steinberg dithering in real-time by just checking a box -- back, then I bet it was much harder! (I will be releasing the source code for this shortly). The dithering code, for example, is easily found on the Internet in copy-and-paste form, and it doesn't take a lot to adapt it for this or other purposes.

Scripting languages are great, and I am not trying to take anything away from that idea. On the contrary, I want to give something back to C/C++, something it has really earned over the last few years.

In the last few years (decade even), a lot of development that would otherwise go to C/C++ has gone toward scripting languages for a very good reason: C++ just wasn't safe or easy for some tasks unless you were a dyed-in-the-wool hardcore programmer, which most of us are not. I am one of those programmers, but I still don't want to do all that work just to develop and experiment with new algorithms. As much as possible, I just want to focus on the algorithms and development code instead.

Since the release of C++11, C/C++ has become a much more amazing tool, correcting -- if sometimes only in philosophy -- many issues that were problematic. From RAII (a horrible name for really just not creating open-ended memory) to lambdas, to a better use of the STL, and so-forth, C++ has really grown and fixed a lot of things that have bothered programmers for a long time. In fact, with C++20 (or is it C++21), I am very excited still about changes coming, particularly the yield() statement -- it only took 40+ years from the original concept, but it's finally here! -- that alone is going to make for some great programs I'm already thinking about.

C++ can now really be used in a much tighter, less error-prone environment. With that, and being able to program procedurally under Windows, we can program in a similar environment, but with the structure of and speed of C++ -- working directly on the machine rather than through a VM. Of course, JIT and other elements of VM-based languages makes things better, but you can build much faster process with C++, not to mention the addition of using instrinsics, asm, and SSE.

Before C++11, the idea that C++ as a heavily structured, statically-typed language may have been a draw towards scripting languages and away from C/C++. I respect that, and now, with all of the new things since C++11, I see the structure as much more of a strength than it was before. Programs these days are bigger, do more, and are more complex -- all good things because it lets us do more, and we can do it very quickly with the right tools. That C/C++ structure keeps things in check and speed much faster (after all, if you have to top-level-decipher and convert a type on every other operation, it's going to be slower). With all of the additives of C++11 and forward, that strong typing and structure now becomes a safe harness without being too restrictive.

It's not released in the Alpha version, but Sagebox has a fully-developed object-oriented scripting language. Sagebox was also originally written as a scripting language with a full IDE. That part never really saw fruition,but the scripting language had already been built, based on my experience as part of the Delphi & Kylix compiler development team at Borland, back in its glory days.

In the next version or so of Sagebox, this will lead to the idea of being able to pass RegEx, functions, and dynamic source code through Sagebox to use as a scripting language.

Again, not taking anything away from scripting or other languages, such as Python, Java, Javascript, Visual Basic, etc. (in fact, I highly recommend P5 that is under Javascript). Everything has its strength.

With Sagebox, I am hoping to provide a set of tools that can help bring back the old days of creative development, casual, ad-hoc programming, in a way where we can just go for it and worry about how we're going to refactor it later -- whether it means keeping it using Sagebox tools, move it to MSVC, Java, C#, whatever.

Sagebox can be written as a pure procedural program or event-driven program, in either console mode or Windows. With Sagebox, you can change your program from Windows to Console Mode or back again with a project switch, without changing any code whatsoever.

Sagebox can also be written as a mixture of procedural code and event-driven code. This lowers the learning curve and workload, by allowing most elements to take place in a procedural mode, moving to event-driven methodology as needed. It turns out that most programs don't need to be written as event-driven at all, even in Windows, but when there is a use for it, Sagebox allows you to move with your needs.

All of the basic controls are supported in Sagebox, and all of them can be personalized. For example, you can create your own graphic buttons with just 2-3 lines of code (and the bitmaps you create).

Windows, Buttons, Sliders, List Boxes, Combo Boxes, Checkboxes, as well as other control types such as Bitmap Windows, Dialog Windows, and more -- all give a lot of power in just a few lines of code, in procedural console mode or a pure event-driven Windows program.

Quick Dev Controls

The Quick Dev Controls are worth discussing as a separate subject. They were written specifically for development. Originally written for console-mode apps to use Windows functions more discretely, the Quick Dev Controls turned out to be so useful, I use them for primary development (Windows or Console Mode), and then move to a proper GUI once I've decided how I want to go about the user interface.

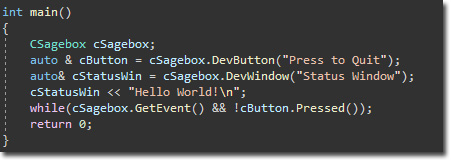

And so-forth, adding controls as you go. As you add controls, the Quick Dev Window resizes itself. Here is the entire program for the above (which can work equally as a Console Mode program or Windows program), taken directly as a screenshot from the editor:

Sagebox features a very easy way to use widgets -- either through a procedural program or Windows event-driven program. The Widgets allow powerful functions with just a call. For example, this widget:

The Color Selector Widget can be used with 2 lines of code: One to bring it up in its own window, or recessed in your window, and another line of code to actually use it.

The Widget then comes up. Whether through a simple procedural program or in reaction to WIndows event sent by the Color Selector Widget, you can then do the following to use it:

Similarly, the above Widget can be used to select curves and get the results in just a few lines of code. If you're a Sagelight user, you might recognize this curves box. It is being brought over from Sagelight as well as number of other widgets.

While Sagebox is pure C++ and doesn't want to interfere in how you want to program, Sagebox also offers powerful functionality in various classes and functions. More are being added now that the Alpha version has been released.

Types such as CPoint (similar to MSVC, but with more functionality), CString, CBitmap, CComplex, CSageTools, and others all work to make programming easier.

Since Sagebox lets you write procedurally, in a Windows program or Console Mode program, it's easy for people new to programming in a GUI environment, or new to C++, in general. Every program you write using Sagebox can be a Windows program or a Console mode program with a project switch and without changing any code.

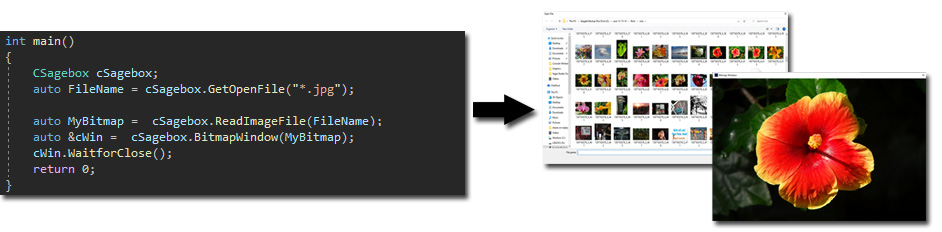

For example, the following program:

gets a file name from the user with the Windows File Dialog, loads the image file, then displays it in a window. Usually, you might want to check for errors, empty file names, and so-forth. But, for this demo, it doesn't matter -- Sagebox is written to understand everything happening in the system. With the code above, if there is a problem and the code doesn't check for errors, Sagebox simply falls through -- it just won't load a bitmap, which will cause the window creation to fail, which will case WaitforClose() to fallthrough.

If you want to check events, such as mouse clicks and mouse movement, you can do this:

Though this is a small program, this is a fully functional Windows program -- or a console-mode program that uses Windows functions. Note that you can change the color of the text inside the text string, or you can specify the color as an option.

For hobbyists, Sagebox has a great set of functions to allow simple, ad-hoc-style creative programming. As the program matures, it can be put into a more proper structure, refactored, and possibly turned into a more even-driven approach if needed.

This allows a lot of movement with just playing around with code that may turn into something or didn't work out, all the way to primary development and program completion.,

One of the main points of Sagebox is that because its so easy to simply experiment, you end up doing it because, well, it's fun.

Since I wrote Sagebox, I have been using it professionally and commercially for quite some time. Depending on the application or situation, I will write entire programs with Sagebox, or in the case of working with a project on another platform, I use Sagebox as a support, development, and testing tool to even when it isn't the main development environment.

For researchers and programming professionals, Sagebox offers a very fast methodology to create development items -- in a procedural fashion or working with event-driven development.

In the code in the last section, for example, I might want to keep the MouseClicked() event where it is, but for mouse movement, I might want to get the event. With Sagebox, it's very easy. You just either sub-class the window or set a Message Handler and then overload the MouseMove() function. This allows you to only use the event-driven approach for specific items without the need to make everything event-driven.

This allows the thread to take its time where it is ok to do so, but then to get the important items as quickly as possible.

Most of the time, programs don't need any event-driven structure. Sagebox works with both, and you can also trap the original Windows message to work directly with Windows. Sagebox also gives you full control over the Windows environment - you can simply grab the Window Handle and Device Context and do what you want with it.

The great thing is that Sagebox is only going to get better. The Alpha version is about getting feedback and input so that Sagebox can work better for those who use it.

The Alpha version has been months in development, making an interface, classes, and functions around a larger body of code written over the years for fast, creative development using Windows.

Now that the Alpha is completed, there are many new additives to come in the next year, such as solid GPU support, a UI designer, procedural Internet functions more controls, and especially Widgets.
